MT1000 Chromatogaph
MT1000
This analyzer was designed around the concept of a cost effective single stream analyzer dedicated to the analysis of the DeMethanizer Bottoms sample. The capability to accurately analyze this important sample point for tower control has long been recognized. The addition of this analyzer in a single stream version provides the customer with an accurate continuously updated analysis in the time frame required for tower control.
Due to the importance of this sample analysis and at times the difficulty of obtaining a representative sample we designed a method to properly extract and deliver a fresh representative sample to the analyzer and return it back to process. The preparation and delivery of the sample is the most important aspect to obtain an accurate analysis. To help in this process we have incorporated VALCO's 4-Port Liquid Valve as part of the system.
The analyzer has been designed to be as simple as possible, yet durable and easy to work on. With a minimum amount of spare parts on hand you can guarantee yourself little to no down time. All the replacements parts are tested and can easily be replaced on-site. This analyzer can be located at the sample point and is electrically heated and only requires a small amount of compressed air for operation.
It is designed to utilize a minimum of Helium or for additional cost savings Hydrogen as a carrier gas. Based on sample conditions and location of the sample probe the analyzer can analyze both liquid with a liquid inject valve, as a liquid with vaporizer regulator, and gas samples. It is important to note this analyzer can also be utilized as a multi-stream analyzer for the analysis of other plant sample points.
Customers that have AIC chromatographs can take advantage of the communications of this unit as it can interface to the existing software platform. For other customers the system is also offered with chromatographic software. We will be offering a network based software in the near future that allows monitoring, configuration, and some maintenance remotely. In addition, the software can record log in/outs to keep track of any changes that have been made and who made them.
Also Available
MT1001 is a single stream version but can be customized as a multi stream gas / vaporizable liquid version.
GL1000 Series Chromatograph
Gas and Non-Vaporizable Liqud GC
We manufacture custom Process On-Line Analyzers for various applications. The analyzer combined with the sample preparation system developed over years of experience provides a reliable and accurate analyzer system that can supply years of service in all types of conditions. This unit has been designed to allow modifications and additions even after the analyzer has been in operation.
Gas or Non-Vaporizable Liquid Sample Not A Problem For This Units
This analyzer is designed with the capability of handling both gas or vaporizable liquid streams with up to 12 % Hexane and non-vaporizable liquid samples in the same unit. This is done while maintaining accuracy and repeatability. Shown two door pedestal version.
Customized or Modfied GCs
We can refurbish, modify, and offer complete replacements
TAC-SYS, Inc. can refurbish, modify, and customize AIC analyzers. Our expertise allows us to also supply replacement systems for the AIC analyzers. If you are looking for a low cost process on-line analyzer that can be configured to interconnect with that type of existing Control System we can provide that requirement. This analyzer can be configured to have the capability of handling two gas and two vaporable liquid streams with up to 12 % Hexane Plus. In addition, the analyzer can be customized to analyze multiple non-vaporizable liquid streams. Shown is an example of a refurblished rack mount unit but we also offer two door pedestal cabinets.
Sample Preparation Systems
Custom Sample Preparation Systems

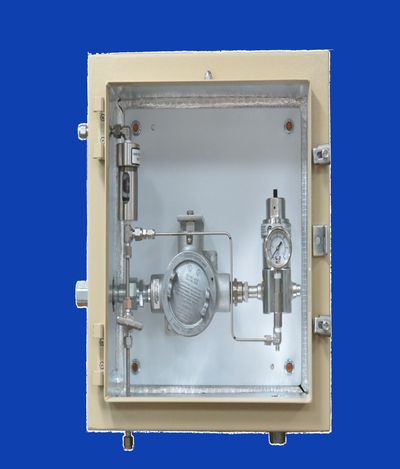

Originally designed as an insulated box to allow the vaporizer regulator to be mounted adjacent to the sample probe. This one was expanded to provide an automatic liquid shut-off to prevent liquid from reaching the analyzer.
Preparing the Sample
No Problems - Only Opportunities
Need to condition your sample before it gets analyzed, let us help you to design the best method. We can design a custom sample system to insure you have a fresh representative sample at your analyzer . Shown is a Custom Sample Cabinet for another manufacturer's analyzer.
Single Sample
So even if it is just one sample, with special requirements, we are here to help. The configurations are endless. With stream information we can design a sample system to fit your needs.
Support
All our custom sample systems come with an information booklet. The QC Data, information required for installation, and list of replacement parts to help maintain or repair from normal use.
Parts & Repairs
Spare Parts
If you are looking spare parts such as a 10 port, ACM, or detector block we have it in stock. We offer Heat Blankets, Columns, or Vaporizer Regulars. We have access to a world of parts and offer short delivery times. We personally expedite each order so let's see what TAC-SYS can do for you.
10-Port Valve not working? Send it in and we'll repair it
We repair an array parts such as a 10- valves, Valco's 4 port, ACM circuit boards and Detector Blocks.
We Take Pide In The Service We Provide
New and Repaired parts are factory tested and where applicable parts are provided with a Performance Plots from our Application Engineering Testing Department. We are also dedicated to providing a fast turn around on repairs.
